| Color: | |
|---|---|
| Communication Way: | |
| Compatible battery: | |
| Display: | |
| Quantity: | |
V311B
Fiberall

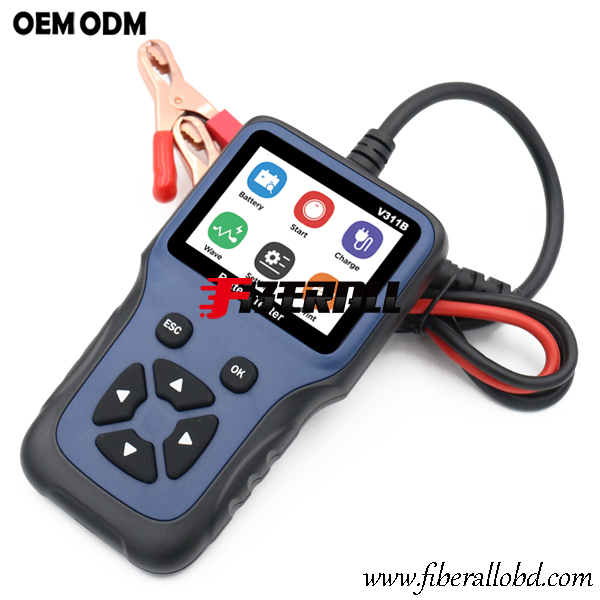

V311B auto battery tester is suitable for 12V automobile starting battery, the working voltage is DC9 ~ 18V, please do not check batteries in series connection. The voltage value will be higher than normal voltage value if you use this battery diagnostic tool when the battery is fully charged, which has been checked under normal conditions. After the headlamp is turned on for 2-3 minutes, the condition will be relieved, and the battery will be checked after the voltage drops to the normal value. Do not use or store this car battery test tool in high temperature, high humidity, flammable, explosive and explosive environment.
This automotive battery tester supports print function, it is able to print the saved screenshots, Connect type-C interface of the car battery tester with the computer, the computer will automatically install the driver, enter the printing interface, select the picture, press the OK button to enter the printing, and select the picture information on the computer to complete the printing. For more operation instruction of FA-V311B 12V Car Starter Battery Tester, please refer to our website: https://www.fiberallobd.com/Operation-Instruction-of-V311B-12V-Automotive-Battery-Test-Tool-id3882511.html
1, 12V battery is universal and has strong versatility;
2, Suitable for multiple 12V battery detection;
3, Quickly analyze the current status of the battery;
4, Reserve production design(red positive, black negative);
5, Support 9 mainstream languages;
6, 2.8 inch color screen display;
7, Print function: press up and down or left and right keys to print the screenshot at the same time;
8, Multi data analysis;
9, ODM service is available.
Part No. | V311B |
Connection way | Fish clamp |
Suitable battery | 12V (100-2000cca lead-acid batteries: ordinary batteries, AGM flat plates, AGM spiral, gel batteries) |
Display | 2.8 inch |
Working temperature | 0 ~ 60 ° C (32 ~ 144 ° f) |
Storage temperature | - 20 ~ 70 ℃ (- 4 ~ 158 ° f) |
Product size | 56 * 88 * 24mm |
Support languages | English. Chinese, Portuguese, Italian, French, German, Spanish, polish, Russian; |
About the color of V311B battery tester: product photos used on this website are only for display and publicity. In order to achieve better display effect, the light was adjusted during shooting and there was correction and adjustment after shooting, which can only be consistent with the real product to the greatest extent, and the real object may be different from the photos. At the same time, from the perspective of production, many factors like different batches, raw material differences and matching ratio, temperature in the production process will lead to color difference, so the existence of color difference is reasonable and normal.
About the size of the vehicle battery test tool: the size provided in the specification is manual measurement, and there may be an error of about 0.5cm, which belongs to normal error.
About customized service of the car battery tester: the top cover, bottom cover, logo of display (label), buttons/key, length of fishing clamp/line, etc. of this auto battery tester can be customized according to the customer's requirements. If you have any demand, please contact our sales staff for negotiation.
