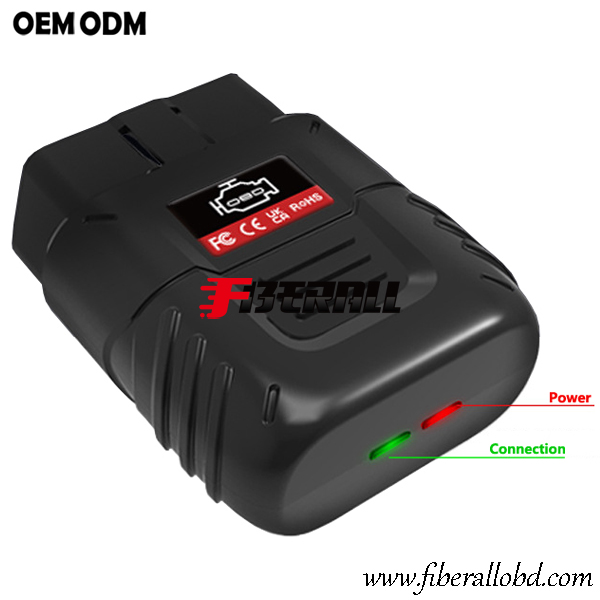

Supports Bluetooth 4.0 connection
Supports Windows, Android and iOS devices
Read trouble code
Eliminate fault code
Display vehicle data
Automatic scan and match
Supports 9 OBD-II protocols
Free App is available
With CE, FCC, RoHS certificate
1, Diagnosis engine fault
2, Clear trouble codes and turn off the MIL ("Check Engine" light).
3, Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System Status
- Fuel Pressure and so on.
Part Number | V019 |
Communication mode | Bluetooth 4.0 |
Master Chip | wafer chip |
Compatible OS | Android/Windows/iOS |
Support Language | English |
Interface Type | 16Pin OBD-II Male |
Supported Protocols | 1. SAE J1850 PWM (41.6Kbaud) 2. SAE J1850 VPW (10.4Kbaud) 3. ISO9141-2(5 baud init, 10.4Kbaud) 4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 5. ISO14230-4 KWP (fast init, 10.4 Kbaud) 6. ISO15765-4 CAN (11bit ID, 500 Kbaud) 7. ISO15765-4 CAN (29bit ID, 500 Kbaud) 8. ISO15765-4 CAN (11bit ID, 250 Kbaud) 9. ISO15765-4 CAN (29bit ID, 250 Kbaud) |
Working voltage | 9-16V |
Working current | 43mA |
Working temperature | -30℃~70℃ |
Product dimension | 59.5 mm*46 mm*22mm |
Inner packing size | 64 mm*26 mm*100mm |
Color | Black or customized |
1. Compatible Operation System
Windows XP, Windows 7/8, Android, iOS and so on.
2. Recommended App
Windows: ScanMaster-ELM
Android: Torque
iOS: Car Scanner
More recommended App will be listed later.
